A325/A325M ZP Heavy hex structural bolts

ASTM A325 Bolts

The ASTM A325 specification covers high strength heavy hex structural bolts from ½” diameter through 1-1/2” diameter. These bolts are intended for use in structural connections and therefore have shorter thread lengths than standard hex bolts. Refer to the Structural Bolts page of our site for thread lengths and other related dimensions.

ASTM F2329

ASTM F2329 covers the requirements for hot-dip zinc coating applied to carbon steel and alloy steel bolts, screws, washers, nuts, and special threaded fasteners applied

ASTM F1554

The ASTM F1554 specification was introduced in 1994 and covers anchor bolts designed to anchor structural supports to concrete foundations. F1554 anchor bolts

ASTM A563

The ASTM A563 specification covers the chemical and mechanical requirements for carbon and alloy steel nuts used on bolts, studs, and externally threaded fasteners.

ASTM A490

The ASTM A490 specification covers quenched and tempered, alloy steel, heavy hex structural bolts from ½” diameter through 1½” diameter with a minimum 150 ksi tensile.

ASTM A449

ASTM A449 covers headed bolts, rods, and anchor bolts in diameters ranging from 1/4"" through 3"" inclusive. It is a medium strength bolt manufactured from a medium carbon or alloy steel that develops its mechanical values through a heat treating process. It is intended for general engineering applications.

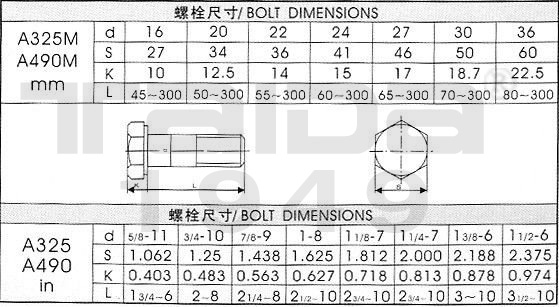

Standard: ASTM A325/A325M
Dia.: 1/2"-1 1/2";
Length:1 1/4"-8";
Surface treatment: Plain ,Black oxygenation, HDG ,ZP

Scope

This specification is applicable to heavy hex structural bolts only. For bolts of other configurations and thread lengths with similar mechanical properties, see Specification A 449.

Bolts for general applications, including anchor bolts, are covered by Specification A 449. Also refer to Specification A 449 for quenched and tempered steel bolts and studs with diameters greater than 1-1/2" but with similar mechanical properties.

Types

TYPE 1	Medium carbon, carbon boron, or medium carbon alloy steel.
TYPE 2	Withdrawn November 1991.
TYPE 3	Weathering steel.

T	Fully threaded A325. (Restricted to 4 times the diameter in length)
M	Metric A325.

Connection Types

Mechanical Properties

Size	Tensile, ksi	Yield, ksi	Elong. %, min	RA %, min
1/2 - 1	120 min	92 min	14	35
1-1/8 - 1-1/2	105 min	81 min	14	35

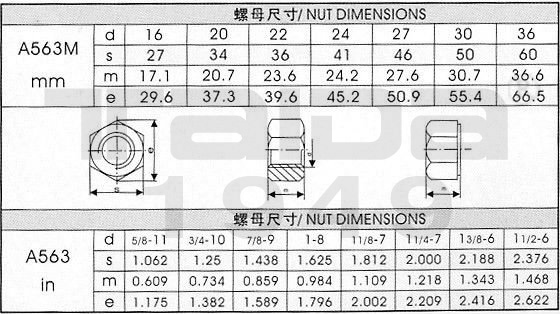

Recommended Nuts and Washers

Nuts			Washers
Type 1		Type 3	Type 1	Type 3
Plain	Galvanized	Plain
A563C, C3, D, DH, DH3	A563DH	A563C3, DH3	F436-1	F436-3
Note: Nuts conforming to A194 Grade 2H are a suitable substitute for use with A325 heavy hex structural bolts. The ASTM A563 Nut
